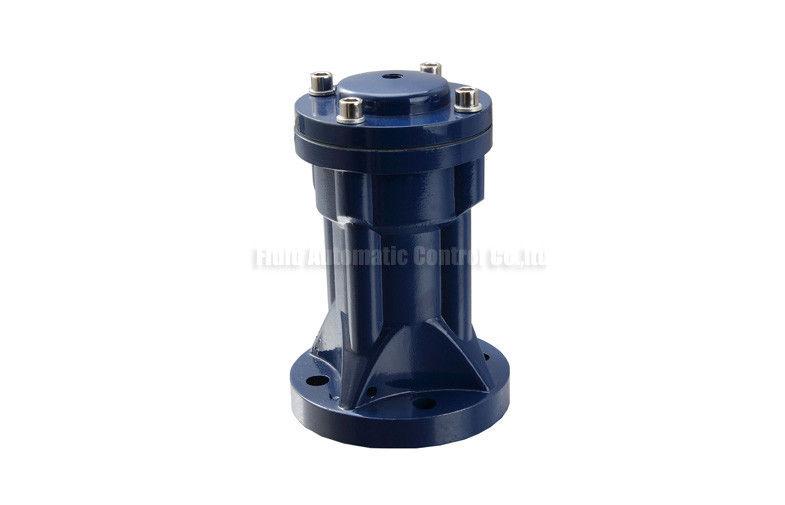

0.3-0.7MPa Working Pressure Pneumatic Control Impact Air Hammer Vibrator,Impact Force 1.2- 48.5 KG’M/S
SX series impact pneumatic air hammer body material aluminum alloy working pressure 0.3~0.7Mpa,impact force 1.2~48.5 KG’M/S,impact power 5.5~220.2N/M ,air inlet port size PT1/4”~PT3/8”,air exhausting port size PT1/8”~G3/8” e.g SX-60
Quick Detail:
* SX Series pneumatic air impact hammer
* Body material Aluminium Alloy
* Working pressure 0.3~0.7Mpa
* Impact force 1.2~48.5 KG’M/S
* Impact power 5.5~220.2N/M
* Air inlet port size G1/4”~G3/8”
* Air exhausting port size G1/8”~G3/8”
* Simple design,easy to operate
* Strong impact force,low noise
* Imapct time interval can be adjustable
* Lubrication free,safety application
* No need for maintenance,cost effectively
* Long service life cycle up to 1000000 cycles
Applications:
SX series impact pneumatic air hammer can be applicable in the explosion-proof,dusty,humidity occassions.
SX series impact pneumatic air hammer widely used in the chemical,food,medical treatment,glass,pesticides,cement industrial to solve the problem of material wall adhesion,block,hanging,bridging etc
Specifications:
| Dimension | Technical Parameter |
| MODEL | A | B | C | D | E | F | Operating Pressure (Mpa) | Impact force (KG'M/S) | Impact Power(N.M) | Weight (KG) |
| SX-30 | 9 | 67 | 82 | 135 | 1/4″PT | 1/8″PT | 0.3～0.7 | 1.2～1.9 | 5.5～13.1 | 1.3 |
| SX-40 | 11 | 77 | 98 | 175 | 1/4″PT | 1/8″PT | 0.3～0.7 | 2.7～4.2 | 9.2～22.3 | 2.2 |
| SX-60 | 12.5 | 110 | 143 | 220 | 1/4″PT | 1/4″PT | 0.3～0.7 | 7～11.2 | 20.6～49.0 | 5.6 |
| SX-80 | 17 | 140 | 170 | 275 | 3/8″PT | 3/8″PT | 0.4～0.5 | 15.5～24.2 | 45.1～109.0 | 11.5 |
| SX-100 | 18.5 | 150 | 195 | 310 | 3/8″PT | 3/8″PT | 0.5~0.7 | 30.2～48.5 | 60.5～220.2 | 18 |
Pneumatic impact hammer,air impact hammer,hammer vibrator
